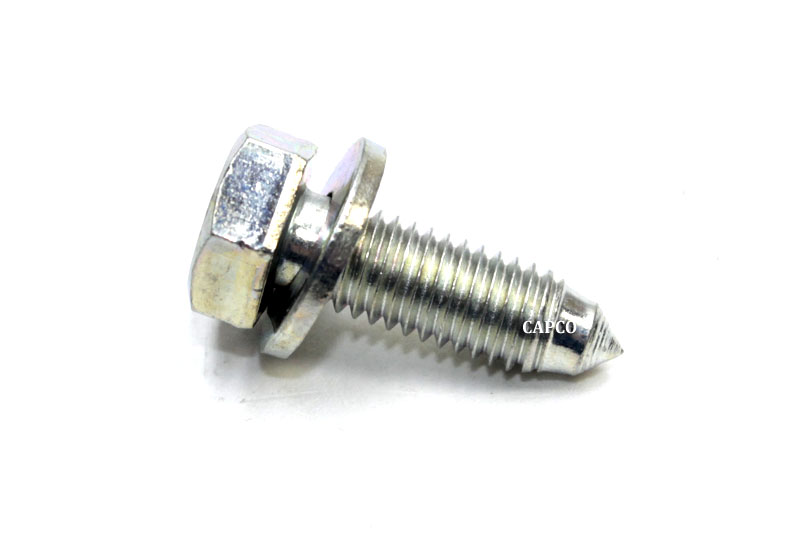

0147-1963-08 HEXAGON BOLT (OEM) Atlas Copco
Description
0147-1963-08 HEXAGON BOLT (OEM) Atlas Copco
Application & Equipment Context
Manual application data identifies this item as Hexa gon bolt. Documented equipment applications include Atlas Copco GA 37, GA 30, ZR 37, ZR 55, ZT 37-PARTS, ZT 30, ZT 37, ZT 45, and 47 additional models; Chicago Pneumatic CPG 350-PARTS-MANUAL, CPE 100, CPF 250, CPF 300, CPVS 40, CPVS 60, SPR 20, and SPR 30; Quincy QOF 20 and QOF 30. The source documentation classifies this part under the Cooling System and places it in the Air flow and cooling system GA (A) section or assembly. Some documented applications include serial-specific coverage, so verify the equipment model and serial number before ordering.
Additional information
| Manufacturer | Atlas Copco |
|---|
Equipment Fitment
Equipment Fitment
Documented fitment from manufacturer parts literature. Verify model, configuration, and serial number before ordering.
Scroll inside the box below to view all 222 equipment fitment records.
Atlas Copco (211)
| Model | System | Serial / Configuration | Assembly Context |
|---|---|---|---|
| G 11 | — | AII-268500 · Pack | Air outlet |
| G 200 | Cooling System | — | Coolers - Cooler plates |
| G 30C | — | AII-268500 · Pack | Air outlet |
| G 55 | — | AII380000 | Bodywork |
| G 90 | — | AII380000 | Bodywork |
| GA 11 | — | AII-268500 · Pack | Air outlet |
| GA 11 | Cooling System | API250000 | Air flow - Cooling system |
| GA 11 | — | API310000 | — |
| GA 11 | — | API310000 | — |
| GA 11 | — | API310000 | — |
| GA 11 | — | API310000 | Cubicle |
| GA 11 | Frame / Enclosure | API310000 | Cubicle door |
| GA 11-30C | — | AII-268500 · Pack | Air outlet |
| GA 110 | Air Intake System | — | Air inlet |
| GA 110 | — | — | Bodywork - GA |
| GA 132 | — | — | Bodywork - GA W |
| GA 15 | — | AII-268500 · Pack | Air outlet |
| GA 15 | Cooling System | API250000 | Air flow - Cooling system |
| GA 15 | — | API310000 | — |
| GA 15 | — | API310000 | — |
| GA 15 | — | API310000 | — |
| GA 15 | — | API310000 | Cubicle |
| GA 15 | Frame / Enclosure | API310000 | Cubicle door |
| GA 15 | — | API427000 | — |
| GA 15 | — | API427000 | — |
| GA 15 | — | API427000 · Pack | Air system |
| GA 160 | Frame / Enclosure | — | — |
| GA 160 | — | — | Bodywork - GA |
| GA 18 | — | AII-268500 · Pack | Air outlet |
| GA 18 | Lubrication System | AII-297500 | Oil system |
| GA 18 | — | API310000 | — |
| GA 18 | — | API310000 | — |
| GA 18 | — | API310000 | — |
| GA 18 | — | API310000 | Cubicle |
| GA 18 | Frame / Enclosure | API310000 | Cubicle door |
| GA 18 | — | API427000 | — |
| GA 18 | — | API427000 | — |
| GA 18 | — | API427000 · Pack | Air system |
| GA 18 | Frame / Enclosure | API822000 · Pack | Bodywork |
| GA 18-30VSD-API421435 | Lubrication System | AII-297500 | Oil system |
| GA 22 | — | AII-268500 · Pack | Air outlet |
| GA 22 | Lubrication System | AII-297500 | Oil system |
| GA 22 | — | API310000 | — |
| GA 22 | — | API310000 | — |
| GA 22 | — | API310000 | — |
| GA 22 | — | API310000 | Cubicle |
| GA 22 | Frame / Enclosure | API310000 | Cubicle door |
| GA 22 | — | API427000 | — |
| GA 22 | — | API427000 | — |
| GA 22 | — | API427000 · Pack | Air system |
| GA 22 | Frame / Enclosure | API822000 · Pack | Bodywork |
| GA 250 | Cooling System | — | Coolers - Cooler plates |
| GA 26 | — | API310000 | — |
| GA 26 | — | API310000 | — |
| GA 26 | — | API310000 | — |
| GA 26 | — | API310000 | Cubicle |
| GA 26 | Frame / Enclosure | API310000 | Cubicle door |
| GA 26 | — | API427000 | — |
| GA 26 | — | API427000 | — |
| GA 26 | — | API427000 · Full Feature | Air system |
| GA 26 | Frame / Enclosure | API822000 · Pack | Bodywork |
| GA 26FF | — | API310000 | — |
| GA 26FF | — | API310000 | — |
| GA 26FF | — | API310000 | — |
| GA 26FF | — | API310000 | Cubicle |
| GA 26FF | Frame / Enclosure | API310000 | Cubicle door |
| GA 30 | Cooling System | 200V/ 60HZ / 230V/ 60HZ / 460V/ 60HZ / 575V/ 60HZ / 230V/50HZ / 230V/60HZ / 380V/60HZ / 400V/50HZ / 460V/60HZ / 500V/50HZ | Air flow and cooling system GA (A) |
| GA 30 | Frame / Enclosure | — | Bodywork |
| GA 30 | Lubrication System | AII-297500 | Oil system |
| GA 30 | — | API310000 | — |
| GA 30 | — | API310000 | — |
| GA 30 | — | API310000 | — |
| GA 30 | — | API310000 | Cubicle |
| GA 30 | Frame / Enclosure | API310000 | Cubicle door |
| GA 30 | — | API427000 | — |
| GA 30 | — | API427000 | — |
| GA 30 | — | API427000 · Full Feature | Air system |
| GA 30 | — | API536000 | — |
| GA 30 | — | API536000 · Air-Cooled / Pack | Air system |
| GA 30 | Cooling System | API536000 · Water-Cooled | Air system |
| GA 30 | — | API536000 · Energy Recovery / 7.5BAR / 8.5BAR / 10BAR / 13BAR | Standard option - Energy recovery system |
| GA 30 | Frame / Enclosure | API822000 · Pack | Bodywork |
| GA 30C | — | AII-268500 · Pack | Air outlet |
| GA 30VSD | Lubrication System | AII-297500 | Oil system |
| GA 37 | Cooling System | 200V/ 60HZ / 230V/ 60HZ / 460V/ 60HZ / 575V/ 60HZ / 230V/50HZ / 230V/60HZ / 380V/60HZ / 400V/50HZ / 460V/60HZ / 500V/50HZ | Air flow and cooling system GA (A) |
| GA 37 | Frame / Enclosure | — | Bodywork |
| GA 37 | Cooling System | API-572446 · 200V/50HZ / 200V/60HZ / 230V/60HZ / 380V/60HZ / 400V/50HZ / 460V/60HZ / 500V/50HZ / 575V/60HZ | Air flow and cooling system - GA (A) |
| GA 37 | — | API-572446 · Pack | Air outlet |
| GA 37 | Frame / Enclosure | API-572446 | Bodywork |
| GA 37 | — | API507438 · Pack | Air outlet |
| GA 37 | Cooling System | API518000 · Air-Cooled / 200V/50HZ / 200V/60HZ / 230V/60HZ / 380V/60HZ / 400V/50HZ / 460V/60HZ / 500V/50HZ / 575V/60HZ | Air flow and cooling system |
| GA 37 | Frame / Enclosure | API518000 | Frame assy |
| GA 37 | — | API536000 | — |
| GA 37 | — | API536000 · Air-Cooled / Pack | Air system |
| GA 37 | Cooling System | API536000 · Water-Cooled | Air system |
| GA 37 | — | API536000 · Energy Recovery / 7.5BAR / 8.5BAR / 10BAR / 13BAR | Standard option - Energy recovery system |
| GA 37 | Frame / Enclosure | API822000 · Pack | Bodywork |
| GA 37+GA45+GA55 | — | API507438 · Pack | Air outlet |
| GA 37+GA45+GA55-GA75-API507438 | — | API507438 · Pack | Air outlet |
| GA 37VSD | Cooling System | API518000 · Air-Cooled / 200V/50HZ / 200V/60HZ / 230V/60HZ / 380V/60HZ / 400V/50HZ / 460V/60HZ | Air flow and cooling system |
| GA 37VSD | Frame / Enclosure | API518000 | Frame assy |
| GA 45 | — | Pack | Air outlet |
| GA 45 | Frame / Enclosure | — | Bodywork |
| GA 45 | Cooling System | API-572446 · 200V/50HZ / 200V/60HZ / 230V/60HZ / 380V/60HZ / 400V/50HZ / 460V/60HZ / 500V/50HZ / 575V/60HZ | Air flow and cooling system - GA (A) |
| GA 45 | — | API-572446 · Pack | Air outlet |
| GA 45 | Frame / Enclosure | API-572446 | Bodywork |
| GA 45 | — | API507438 · Pack | Air outlet |
| GA 45 | Cooling System | API518000 · Air-Cooled / 200V/50HZ / 200V/60HZ / 230V/60HZ / 380V/60HZ / 400V/50HZ / 460V/60HZ / 500V/50HZ / 575V/60HZ | Air flow and cooling system |
| GA 45 | Frame / Enclosure | API518000 | Frame assy |
| GA 45 | — | API536000 | — |
| GA 45 | — | API536000 · Air-Cooled / Pack | Air system |
| GA 45 | Cooling System | API536000 · Water-Cooled | Air system |
| GA 45 | — | API536000 · Energy Recovery / 7.5BAR / 8.5BAR / 10BAR / 13BAR | Standard option - Energy recovery system |
| GA 55 | — | Pack | Air outlet |
| GA 55 | Frame / Enclosure | — | Bodywork |
| GA 55 | — | AII380000 | Bodywork |
| GA 55 | — | API-572446 · Pack | Air outlet |
| GA 55 | — | API-572446 · Pack | Air outlet |
| GA 55 | Frame / Enclosure | API-572446 | Bodywork |
| GA 55 | — | API507438 · Pack | Air outlet |
| GA 55 | Cooling System | API518000 · Air-Cooled / 200V/50HZ / 200V/60HZ / 230V/60HZ / 380V/60HZ / 400V/50HZ / 460V/60HZ / 500V/50HZ / 575V/60HZ | Air flow and cooling system |
| GA 55 | Frame / Enclosure | API518000 | Frame assy |
| GA 55 | — | API610000 | — |
| GA 55 | Cooling System | API610000 · Air-Cooled | Air flow and cooling system |
| GA 55 | — | API610000 · Water-Cooled / Full Feature | Air outlet |
| GA 55 | Air Intake System | API615000 | Air system |
| GA 55 | Cooling System | API660000 | Air flow and cooling system |
| GA 55-VSD-GA-75-VSD-GA-90-VSD-API660000 | Cooling System | API660000 | Air flow and cooling system |
| GA 55C | — | Pack | Air outlet |
| GA 55C | Frame / Enclosure | — | Bodywork |
| GA 55P | — | AII380000 | Bodywork |
| GA 55P-GA90AIR-WATER | — | AII380000 | Bodywork |
| GA 55VSD | Cooling System | API518000 · Air-Cooled / 200V/50HZ / 200V/60HZ / 230V/60HZ / 380V/60HZ / 400V/50HZ / 460V/60HZ / 500V/50HZ / 575V/60HZ | Air flow and cooling system |
| GA 55VSD | Frame / Enclosure | API518000 | Frame assy |
| GA 7 | Cooling System | API250000 | Air flow - Cooling system |
| GA 75 | — | AII380000 | Bodywork |
| GA 75 | — | API507438 · Pack | Air outlet |
| GA 75 | Cooling System | API518000 · Air-Cooled | Air flow and cooling system |
| GA 75 | Frame / Enclosure | API518000 | Frame assy |
| GA 75 | — | API610000 | — |
| GA 75 | Cooling System | API610000 · Air-Cooled | Air flow and cooling system |
| GA 75 | — | API610000 · Water-Cooled / Full Feature | Air outlet |
| GA 75 | Air Intake System | API615000 | Air system |
| GA 75 | — | API653700 | — |
| GA 75 | Cooling System | API653700 · Air-Cooled | Air flow and cooling system |
| GA 75 | — | API653700 · Water-Cooled / Pack | Air outlet |
| GA 75 | Cooling System | API660000 · 460V/60HZ / 500V/50HZ / 575V/60HZ / 380V/60HZ / 400V/50HZ | Air flow and cooling system |
| GA 90 | Air Intake System | — | Air inlet |
| GA 90 | — | — | Roof assembly |
| GA 90 | — | AII380000 | Bodywork |
| GA 90 | — | API610000 | — |
| GA 90 | — | API610000 · Water-Cooled / Full Feature | Air outlet |
| GA 90 | — | API610000 · 400V/50HZ / 460V/60HZ | Bodywork fan |
| GA 90 | Air Intake System | API615000 | Air system |
| GA 90 | — | API653700 | — |
| GA 90 | Cooling System | API653700 · Air-Cooled | Air flow and cooling system |
| GA 90 | — | API653700 · Water-Cooled / Pack | Air outlet |
| GA 90 | Cooling System | API660000 · 460V/60HZ / 500V/50HZ / 575V/60HZ / 380V/60HZ / 400V/50HZ | Air flow and cooling system |
| GA 90+APF146197 | Air Intake System | — | Air inlet |
| GA 90+APF146197 | — | — | Roof assembly |
| GA 90AIR | — | AII380000 | Bodywork |
| GX 11 | Frame / Enclosure | AII-160000 · Pack | Bodywork - Specific parts |
| GX 15 | — | Geldigvanafvolgendserienumme · 7.5BAR / 10BAR / 13BAR | Drive arrangement |
| GX 18 | — | Geldigvanafvolgendserienumme · 7.5BAR / 10BAR / 13BAR | Drive arrangement |
| GX 22 | — | Geldigvanafvolgendserienumme · 7.5BAR / 10BAR / 13BAR | Drive arrangement |
| GX 7 | Frame / Enclosure | AII-160000 · Pack | Bodywork - Specific parts |
| SF 1 | — | AII694200 | — |
| SF 1 | Cooling System | AII694200 | Cooling system - SF 6, SF 8 Multi - Low |
| SF 15 | — | AII694200 | — |
| SF 15 | Cooling System | AII694200 | Cooling system - SF 6, SF 8 Multi - Low |
| ZR 30 | — | API786149 | — |
| ZR 30 | Drive System | API786149 · Pack | Air system |
| ZR 30 | Frame / Enclosure | API786149 · Pack | Bodywork |
| ZR 37 | — | API-780000 · Full Feature | Air system |
| ZR 37 | Frame / Enclosure | API-780000 · Pack | Bodywork |
| ZR 37 | — | API786149 | — |
| ZR 37 | Drive System | API786149 · Pack | Air system |
| ZR 37 | Frame / Enclosure | API786149 · Pack | Bodywork |
| ZR 45 | — | API786149 | — |
| ZR 45 | Drive System | API786149 · Pack | Air system |
| ZR 45 | Frame / Enclosure | API786149 · Pack | Bodywork |
| ZR 55 | — | API-780000 · Full Feature | Air system |
| ZR 55 | Frame / Enclosure | API-780000 · Pack | Bodywork |
| ZT 15 | — | API788824 | — |
| ZT 15 | — | API788824 | B3/ B5 |
| ZT 15 | — | API788824 | B3/ B5 |
| ZT 15 | Cooling System | API788824 | IMD cooling fan |
| ZT 18 | — | API788824 | — |
| ZT 18 | — | API788824 | B3/ B5 |
| ZT 18 | — | API788824 | B3/ B5 |
| ZT 18 | Cooling System | API788824 | IMD cooling fan |
| ZT 22 | — | API788824 | — |
| ZT 22 | — | API788824 | B3/ B5 |
| ZT 22 | — | API788824 | B3/ B5 |
| ZT 22 | Cooling System | API788824 | IMD cooling fan |
| ZT 30 | — | API786149 | — |
| ZT 30 | — | API786149 · Pack | Air system |
| ZT 30 | — | API786149 | Bodywork - Common |
| ZT 37 | — | API-780000 · Full Feature | Air system |
| ZT 37 | Frame / Enclosure | API-780000 · Pack | Bodywork |
| ZT 37 | — | API786149 | — |
| ZT 37 | — | API786149 · Pack | Air system |
| ZT 37 | — | API786149 | Bodywork - Common |
| ZT 37-PARTS | — | API786149 | — |
| ZT 37-PARTS | — | API786149 · Pack | Air system |
| ZT 37-PARTS | — | API786149 | Bodywork - Common |
| ZT 45 | — | API786149 | — |
| ZT 45 | — | API786149 · Pack | Air system |
| ZT 45 | — | API786149 | Bodywork - Common |
| ZT 55 | — | API-780000 · Full Feature | Air system |
| ZT 55 | Frame / Enclosure | API-780000 · Pack | Bodywork |
Chicago Pneumatic (9)
| Model | System | Serial / Configuration | Assembly Context |
|---|---|---|---|
| CPE 100 | Pneumatic / Control Air System | API150000 · 440V/60HZ / 460V/60HZ / 575V/60HZ / 220V/60HZ / 230V/50HZ / 230V/60HZ / 380V/60HZ / 400V/50HZ | Chicago Pneumatic |
| CPF 250 | Pneumatic / Control Air System | APCxxxxxx | Chicago Pneumatic |
| CPF 300 | Pneumatic / Control Air System | APCxxxxxx | Chicago Pneumatic |
| CPG 350-PARTS-MANUAL | Pneumatic / Control Air System | Pack | Chicago Pneumatic |
| CPG 350-PARTS-MANUAL | Pneumatic / Control Air System | Pack | Chicago Pneumatic |
| CPVS 40 | Pneumatic / Control Air System | API100000 | Chicago Pneumatic |
| CPVS 60 | Pneumatic / Control Air System | API100000 | Chicago Pneumatic |
| SPR 20 | — | API770000 | — |
| SPR 30 | — | API770000 | — |
Quincy (2)
| Model | System | Serial / Configuration | Assembly Context |
|---|---|---|---|
| QOF 20 | — | — | — |
| QOF 30 | — | — | — |
