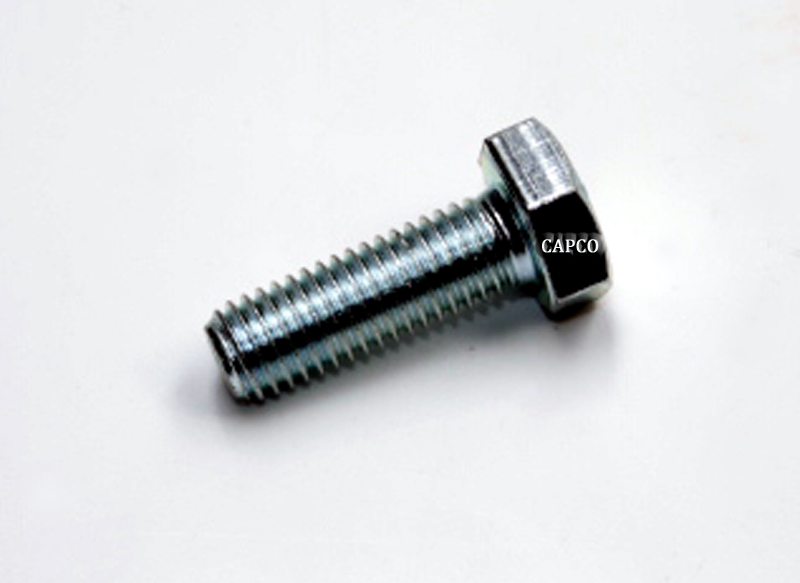

0147-1363-03 SCREW: (OEM) Atlas Copco
Description
0147-1363-03 SCREW: (OEM) Atlas Copco
Application & Equipment Context
Manual application data identifies this item as GA132, GA160 8010. Documented equipment applications include Atlas Copco GA 132, GA 160, GA 110, GA 90, GX 5, G 160, ZR 37, ZR 30, and 65 additional models. The source documentation classifies this part under the Drive System and places it in the Fan and cooling duct plates - GA section or assembly. Some documented applications include serial-specific coverage, so verify the equipment model and serial number before ordering.
Additional information
| Manufacturer | Atlas Copco |
|---|
Equipment Fitment
Equipment Fitment
Documented fitment from manufacturer parts literature. Verify model, configuration, and serial number before ordering.
Scroll inside the box below to view all 119 equipment fitment records.
Atlas Copco (119)
| Model | System | Serial / Configuration | Assembly Context |
|---|---|---|---|
| CD 7 | — | CAT C18 | (Part of service kit, see page 30) |
| G 110 | Lubrication System | — | Air and oil system - C146 |
| G 110 | Cooling System | — | Fan and cooling duct plates |
| G 110W | Lubrication System | — | Air and oil system - C146 |
| G 132 | Lubrication System | — | Air and oil system - C146 |
| G 132W | Lubrication System | — | Air and oil system - C146 |
| G 160 | Lubrication System | — | Air and oil system - C146 |
| G 160 | Cooling System | — | Fan and cooling duct plates |
| G 160W | Lubrication System | — | Air and oil system - C146 |
| GA 110 | — | — | Fan and cooling duct plates - GA 90 |
| GA 110 | — | AIF-056813 | Fan and cooling duct plates - GA |
| GA 110 W | — | — | Fan and cooling duct plates - GA 90 |
| GA 110 W | Lubrication System | AIF-056813 | Air and oil system - GA |
| GA 132 | — | — | Fan and cooling duct plates - GA 132 |
| GA 132 | — | AIF-056813 | Fan and cooling duct plates - GA |
| GA 132 | — | AIF-079019 | Fan and cooling duct plates - GA (A) |
| GA 132 W | — | — | Fan and cooling duct plates - GA 132 |
| GA 132 W | Lubrication System | AIF-056813 | Air and oil system - GA |
| GA 132 W | — | AIF-079019 | Fan and cooling duct plates - GA (A) |
| GA 132-180VSD | — | AIF-079019 | Fan and cooling duct plates - GA (A) |
| GA 160 | — | — | Fan and cooling duct plates - GA 132 |
| GA 160 | — | AIF-056813 | Fan and cooling duct plates - GA |
| GA 160 W | — | — | Fan and cooling duct plates - GA 132 |
| GA 160 W | Lubrication System | AIF-056813 | Air and oil system - GA |
| GA 160W | Lubrication System | AIF-056813 | Air and oil system - GA |
| GA 180 | — | AIF-079019 | Fan and cooling duct plates - GA (A) |
| GA 180 W | — | AIF-079019 | Fan and cooling duct plates - GA (A) |
| GA 180VSD | — | AIF-079019 | Fan and cooling duct plates - GA (A) |
| GA 200 | — | — | Fan and cooling duct plates - GA |
| GA 200 W | — | — | Fan and cooling duct plates - GA |
| GA 250 | — | — | Fan and cooling duct plates - GA |
| GA 250 W | — | — | Fan and cooling duct plates - GA |
| GA 30 | Air Intake System | AII380000 | Air inlet - GA W |
| GA 30 W | Air Intake System | AII380000 | Air inlet - GA W |
| GA 30-55C | Air Intake System | AII380000 | Air inlet - GA W |
| GA 30FF | Air Intake System | AII380000 | Air inlet - GA W |
| GA 315 | — | — | Fan and cooling duct plates - GA |
| GA 315 | Cooling System | APF178175 | Hose assembly |
| GA 315 W | — | — | Fan and cooling duct plates - GA |
| GA 315 W | Cooling System | APF178175 | Hose assembly |
| GA 355 | Cooling System | APF178175 | Hose assembly |
| GA 355 W | Cooling System | APF178175 | Hose assembly |
| GA 37 | Air Intake System | AII380000 | Air inlet - GA W |
| GA 37 | — | API518000 · 13 BAR | — |
| GA 37 W | Air Intake System | AII380000 | Air inlet - GA W |
| GA 400 | Cooling System | APF178175 | Hose assembly |
| GA 400 W | Cooling System | APF178175 | Hose assembly |
| GA 45 | Air Intake System | AII380000 | Air inlet - GA W |
| GA 45 | — | API518000 · 13 BAR | — |
| GA 45 W | Air Intake System | AII380000 | Air inlet - GA W |
| GA 450 | Cooling System | APF178175 | Hose assembly |
| GA 450 W | Cooling System | APF178175 | Hose assembly |
| GA 50 W | Drive System | AII365800 · Workplace | Air outlet |
| GA 500 | Cooling System | APF178175 | Hose assembly |
| GA 500 W | Cooling System | APF178175 | Hose assembly |
| GA 50W | Drive System | AII365800 · Workplace | Air outlet |
| GA 55 | Air Intake System | AII380000 | Air inlet - GA W |
| GA 55 | — | API518000 · 13 BAR | — |
| GA 55 | — | API610000 | — |
| GA 55 | — | API610000 · Water-Cooled / Full Feature | Air outlet |
| GA 55 | — | API610000 · Air-Cooled / Full Feature | Air outlet |
| GA 55 | Air Intake System | API615000 | Air system |
| GA 55 W | Drive System | AII365800 · Workplace | Air outlet |
| GA 55C | Air Intake System | AII380000 | Air inlet - GA W |
| GA 55C W | Air Intake System | AII380000 | Air inlet - GA W |
| GA 55W | Drive System | AII365800 · Workplace | Air outlet |
| GA 75 | — | API518000 · 13 BAR | — |
| GA 75 | — | API610000 | — |
| GA 75 | — | API610000 · Water-Cooled / Full Feature | Air outlet |
| GA 75 | — | API610000 · Air-Cooled / Full Feature | Air outlet |
| GA 75 | Air Intake System | API615000 | Air system |
| GA 75 | — | API653700 · Water-Cooled / Pack | Air outlet |
| GA 90 | — | — | Fan and cooling duct plates - GA 90 |
| GA 90 | — | AIF-056813 | Fan and cooling duct plates - GA |
| GA 90 | — | API610000 | — |
| GA 90 | — | API610000 · Water-Cooled / Full Feature | Air outlet |
| GA 90 | — | API610000 · Air-Cooled / Full Feature | Air outlet |
| GA 90 | Air Intake System | API615000 | Air system |
| GA 90 | — | API653700 · Water-Cooled / Pack | Air outlet |
| GA 90 W | — | — | Fan and cooling duct plates - GA 90 |
| GA 90 W | Lubrication System | AIF-056813 | Air and oil system - GA |
| GA 90- | — | — | Fan and cooling duct plates - GA 90 |
| GA 90-110-132-160 | Lubrication System | AIF-056813 | Air and oil system - GA |
| GA 90-160-AIF056813 | Lubrication System | AIF-056813 | Air and oil system - GA |
| GR 110 | Cooling System | — | Fan and cooling duct plates - GR |
| GR 110 W | Cooling System | — | Fan and cooling duct plates - GR |
| GX 5 | Drive System | API-641640 · 230V/60HZ / 460V/60HZ / 575V/60HZ | Compressor element and drive gear |
| ZR 160 | — | Pack / 8.6BAR / 10.4BAR | — |
| ZR 160 | Drive System | Full Feature / 10-10.4BAR | Air outlet |
| ZR 200 | Drive System | Full Feature / 10-10.4BAR | Air outlet |
| ZR 250 | Drive System | — | Gearbox Assembly |
| ZR 275 | Drive System | — | Gearbox Assembly |
| ZR 30 | — | AII-705000 · Full Feature / Imd Dryer | Air outlet |
| ZR 30 | — | API786149 | — |
| ZR 30 | Drive System | API786149 · Pack | Air system |
| ZR 37 | — | AII-702000 · Full Feature / Imd Dryer | Air outlet |
| ZR 37 | — | AII-705000 · Full Feature / Imd Dryer | Air outlet |
| ZR 37 | — | API-780000 · Full Feature | Air system |
| ZR 37 | — | API786149 | — |
| ZR 37 | Drive System | API786149 · Pack | Air system |
| ZR 45 | — | AII-705000 · Full Feature / Imd Dryer | Air outlet |
| ZR 45 | — | API786149 | — |
| ZR 45 | Drive System | API786149 · Pack | Air system |
| ZR 50 | — | AII-702000 · Full Feature / Imd Dryer | Air outlet |
| ZR 55 | — | Full Feature | Air outlet |
| ZR 55 | — | API-780000 · Full Feature | Air system |
| ZT 15 | Electrical & Control System | API788824 | Drive assembly |
| ZT 18 | Electrical & Control System | API788824 | Drive assembly |
| ZT 22 | Electrical & Control System | API788824 | Drive assembly |
| ZT 30 | — | API786149 | — |
| ZT 30 | — | API786149 · Pack | Air system |
| ZT 37 | — | API-780000 · Full Feature | Air system |
| ZT 37 | — | API786149 | — |
| ZT 37 | — | API786149 · Pack | Air system |
| ZT 37-PARTS | — | API786149 | — |
| ZT 37-PARTS | — | API786149 · Pack | Air system |
| ZT 45 | — | API786149 | — |
| ZT 45 | — | API786149 · Pack | Air system |
| ZT 55 | — | API-780000 · Full Feature | Air system |
