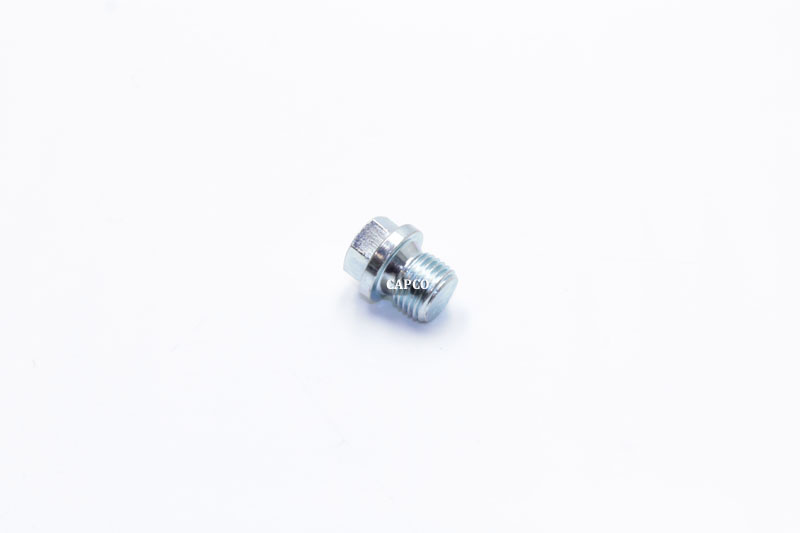

0686-3716-01 Replacement Atlas Copco PLUG, DRAIN
Description
0686-3716-01 Replacement Atlas Copco PLUG, DRAIN
Application & Equipment Context
Manual application data identifies this item as Plug. Documented equipment applications include Atlas Copco GA 132 W, GA 160 W, GA 90 W, GA 110 W, GA 110, GA 90, ZR 500, ZR 630, and 56 additional models; Quincy QGS 40-50C, QGS 40, and QGS 50C; Chicago Pneumatic CPF 250 and CPF 300. The source documentation classifies this part under the Lubrication System and places it in the Air outlet section or assembly. Some documented applications include serial-specific coverage, so verify the equipment model and serial number before ordering.
Additional information
| Manufacturer | Atlas Copco |
|---|
Equipment Fitment
Equipment Fitment
Documented fitment from manufacturer parts literature. Verify model, configuration, and serial number before ordering.
Scroll inside the box below to view all 113 equipment fitment records.
Atlas Copco (108)
| Model | System | Serial / Configuration | Assembly Context |
|---|---|---|---|
| CD 7 | — | CAT C18 | (Part of service kit, see page 30) |
| G 11 | — | AII-268500 · Workplace | Air outlet |
| G 11 | Lubrication System | AII-268500 | Oil system |
| G 30C | — | AII-268500 · Workplace | Air outlet |
| G 30C | Lubrication System | AII-268500 | Oil system |
| GA 11 | Drive System | Workplace | Air outlet |
| GA 11 | Lubrication System | — | Oil system |
| GA 11 | — | AII-268500 · Workplace | Air outlet |
| GA 11 | Lubrication System | AII-268500 | Oil system |
| GA 11-30C | — | AII-268500 · Workplace | Air outlet |
| GA 11-30C | Lubrication System | AII-268500 | Oil system |
| GA 110 | — | 13.8BAR / 14BAR | Assembly |
| GA 110 | Lubrication System | AIF-056813 | Air and oil system - GA |
| GA 110 W | — | AIF-056813 | Air outlet |
| GA 132 W | — | AIF-056813 | Air outlet |
| GA 15 | Drive System | Workplace | Air outlet |
| GA 15 | — | AII-268500 · Workplace | Air outlet |
| GA 15 | Lubrication System | AII-268500 | Oil system |
| GA 160 | — | Full Feature / 6.9BAR / 7.5BAR / 8.5BAR / 8.6BAR | Air outlet |
| GA 160 W | — | AIF-056813 | Air outlet |
| GA 160W | — | AIF-056813 | Air outlet |
| GA 18 | Drive System | Workplace | Air outlet |
| GA 18 | — | AII-268500 · Workplace | Air outlet |
| GA 18 | Lubrication System | AII-268500 | Oil system |
| GA 18 | — | AII-297500 · Workplace | Air flow |
| GA 18 | Lubrication System | AII-297500 | Oil system |
| GA 18-30VSD-API421435 | — | AII-297500 · Workplace | Air flow |
| GA 18-30VSD-API421435 | Lubrication System | AII-297500 | Oil system |
| GA 200 | Air Intake System | — | Air inlet |
| GA 200 W | Air Intake System | — | Air inlet |
| GA 22 | Drive System | Workplace | Air outlet |
| GA 22 | — | AII-268500 · Workplace | Air outlet |
| GA 22 | Lubrication System | AII-268500 | Oil system |
| GA 22 | — | AII-297500 · Workplace | Air flow |
| GA 22 | Lubrication System | AII-297500 | Oil system |
| GA 250 | Air Intake System | — | Air inlet |
| GA 250 W | Air Intake System | — | Air inlet |
| GA 30 | — | AII-297500 · Workplace | Air flow |
| GA 30 | Lubrication System | AII-297500 | Oil system |
| GA 30 | — | AII380000 · Energy Recovery | — |
| GA 30 W | — | AII380000 · Energy Recovery | — |
| GA 30-55C | — | AII380000 · Energy Recovery | — |
| GA 30C | Drive System | Workplace | Air outlet |
| GA 30C | — | AII-268500 · Workplace | Air outlet |
| GA 30C | Lubrication System | AII-268500 | Oil system |
| GA 30FF | — | AII380000 · Energy Recovery | — |
| GA 30VSD | — | AII-297500 · Workplace | Air flow |
| GA 30VSD | Lubrication System | AII-297500 | Oil system |
| GA 315 | Air Intake System | — | Air inlet |
| GA 315 W | Air Intake System | — | Air inlet |
| GA 37 | — | AII380000 · Energy Recovery | — |
| GA 37 | Cooling System | API518000 · Air-Cooled / 200V/50HZ / 200V/60HZ / 230V/60HZ / 380V/60HZ / 400V/50HZ / 460V/60HZ / 500V/50HZ / 575V/60HZ | Air flow and cooling system |
| GA 37 W | — | AII380000 · Energy Recovery | — |
| GA 45 | — | AII380000 · Energy Recovery | — |
| GA 45 | Cooling System | API518000 · Air-Cooled / 200V/50HZ / 200V/60HZ / 230V/60HZ / 380V/60HZ / 400V/50HZ / 460V/60HZ / 500V/50HZ / 575V/60HZ | Air flow and cooling system |
| GA 45 W | Drive System | AII380000 · 200V/60HZ / 460V/60HZ / 230V/50HZ / 380V/60HZ / 400V/50HZ / 500V/60HZ / 575V/60HZ | — |
| GA 45 W | — | AII380000 · Energy Recovery | — |
| GA 55 | — | AII380000 · Energy Recovery | — |
| GA 55 | Cooling System | API518000 · Air-Cooled / 200V/50HZ / 200V/60HZ / 230V/60HZ / 380V/60HZ / 400V/50HZ / 460V/60HZ / 500V/50HZ / 575V/60HZ | Air flow and cooling system |
| GA 55C | — | AII380000 · Energy Recovery | — |
| GA 55C W | — | AII380000 · Energy Recovery | — |
| GA 55VSD | Cooling System | API518000 · Air-Cooled / 200V/50HZ / 200V/60HZ / 230V/60HZ / 380V/60HZ / 400V/50HZ / 460V/60HZ / 500V/50HZ / 575V/60HZ | Air flow and cooling system |
| GA 75 | — | API653700 | — |
| GA 75 | — | API653700 | — |
| GA 90 | Lubrication System | AIF-056813 | Air and oil system - GA |
| GA 90 | — | API653700 | — |
| GA 90 | — | API653700 | — |
| GA 90 W | — | AIF-056813 | Air outlet |
| GX 15 | Lubrication System | Geldigvanafvolgendserienumme | Oil System |
| GX 18 | Lubrication System | Geldigvanafvolgendserienumme | Oil System |
| GX 22 | Lubrication System | Geldigvanafvolgendserienumme | Oil System |
| ZR 160 | — | Pack / 8.6BAR / 10.4BAR | — |
| ZR 30 | Drive System | API786149 · Pack | Air system |
| ZR 37 | — | AII-702000 · Full Feature / Imd Dryer | Air outlet |
| ZR 37 | Drive System | AII-702000 · Full Feature / Id Dryer | Air outlet |
| ZR 37 | Cooling System | AII-702000 · Imd Dryer | Coolers |
| ZR 37 | — | API-780000 · Full Feature | Air system |
| ZR 37 | Drive System | API786149 · Pack | Air system |
| ZR 45 | Drive System | API786149 · Pack | Air system |
| ZR 450 | — | — | Mountings on vessel |
| ZR 450-750-ASL-9829310080-01-ED00-02 | Air Intake System | — | Air inlet |
| ZR 50 | — | AII-702000 · Full Feature / Imd Dryer | Air outlet |
| ZR 50 | Drive System | AII-702000 · Full Feature / Id Dryer | Air outlet |
| ZR 50 | Cooling System | AII-702000 · Imd Dryer | Coolers |
| ZR 500 | — | — | — |
| ZR 55 | — | Full Feature / Energy Recovery | Water system |
| ZR 55 | — | API-780000 | — |
| ZR 6 | — | — | Mountings on vessel |
| ZR 630 | — | — | — |
| ZR 75 | — | Full Feature / Energy Recovery | Water system |
| ZR 750 | — | — | Mountings on vessel |
| ZR 900 | — | — | Mountings on vessel |
| ZT 15 | Cooling System | API788824 | — |
| ZT 18 | — | AIF-048479 | — |
| ZT 18 | — | AII-705000 · Full Feature / Imd Dryer | Air outlet |
| ZT 18 | Cooling System | API788824 | — |
| ZT 18-22-30 | — | AIF-048479 | — |
| ZT 18-22-30-37 | — | AIF-048479 | — |
| ZT 22 | — | AIF-048479 | — |
| ZT 22 | Cooling System | API788824 | — |
| ZT 37 | — | AIF-048479 | — |
| ZT 37 | — | AII-702000 · Full Feature / Imd Dryer | Air outlet |
| ZT 37 | Drive System | AII-702000 · Full Feature / Id Dryer | Air outlet |
| ZT 37 | — | API-780000 | — |
| ZT 50 | — | AII-702000 · Full Feature / Imd Dryer | Air outlet |
| ZT 50 | Drive System | AII-702000 · Full Feature / Id Dryer | Air outlet |
| ZT 55 | — | API-780000 | — |
| ZT 90 | — | Pack | Air outlet |
Chicago Pneumatic (2)
| Model | System | Serial / Configuration | Assembly Context |
|---|---|---|---|
| CPF 250 | Pneumatic / Control Air System | APCxxxxxx | Chicago Pneumatic |
| CPF 300 | Pneumatic / Control Air System | APCxxxxxx | Chicago Pneumatic |
Quincy (3)
| Model | System | Serial / Configuration | Assembly Context |
|---|---|---|---|
| QGS 40 | Air Intake System | 30-37KW | Air filter assembly HP40 |
| QGS 40-50C | Air Intake System | 30-37KW | Air filter assembly HP40 |
| QGS 50C | Air Intake System | 30-37KW | Air filter assembly HP40 |
