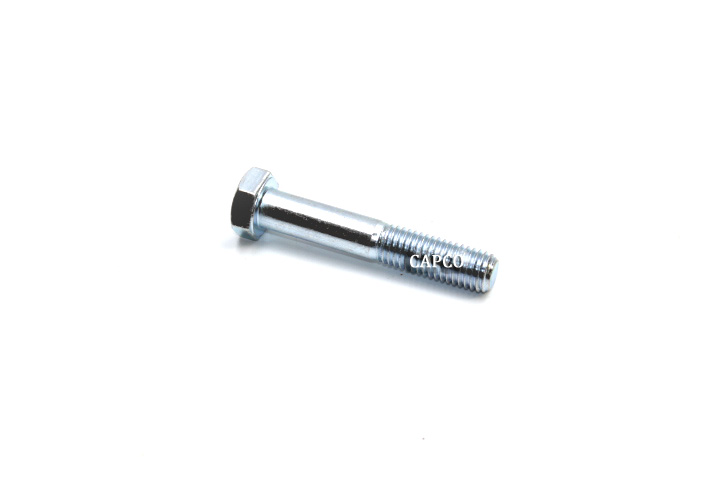

0147-1409-03 Replacement Atlas Copco SCREW
$3.06
0147-1409-03 Replacement Atlas Copco SCREW
Description
0147-1409-03 Replacement Atlas Copco SCREW
Application & Equipment Context
Manual application data identifies this item as Bolt. Documented equipment applications include Atlas Copco GA 160, GA 30 W, GA 37, BD 185, GA 55-, GA 45, GA 55 W, GA 75-100-125-150-175, and 41 additional models; Quincy QGS 40, QGS 100, QGS 75, QGS 60, and QGS 50. The source documentation classifies this part under the Compression System and places it in the Compressor element(s) and drive gear section or assembly. Some documented applications include serial-specific coverage, so verify the equipment model and serial number before ordering.
Additional information
| Manufacturer | Atlas Copco |
|---|
Equipment Fitment
Equipment Fitment
Documented fitment from manufacturer parts literature. Verify model, configuration, and serial number before ordering.
Atlas Copco (61)
| Model | System | Serial / Configuration | Assembly Context |
|---|---|---|---|
| BD 185 | — | — | Air flow - Bottom assembly - BD 100, BD 150, BD 185 |
| BD 250 | — | — | Air flow - Bottom assembly - BD 250, BD 300 |
| BD 300 | — | — | Air flow - Bottom assembly - BD 250, BD 300 |
| CD 110 | — | API692000 | Air system - Pressure vessel - CD 110+, CD 150+, CD 185+ |
| CD 150 | — | API692000 | Air system - Pressure vessel - CD 110+, CD 150+, CD 185+ |
| CD 185 | — | API692000 | Air system - Pressure vessel - CD 110+, CD 150+, CD 185+ |
| CD 250 | — | API692000 | Air system - Bottom assembly - CD 250+, CD 300+ |
| CD 300 | — | API692000 | Air system - Bottom assembly - CD 250+, CD 300+ |
| CD 7 | Drive System | CAT C18 | Compressor Drive |
| G 110 | — | — | Service kits |
| G 110W | — | — | Service kits |
| G 132 | — | — | Service kits |
| G 132W | — | — | Service kits |
| G 160 | — | — | Service kits |
| G 160W | — | — | Service kits |
| G 200 | Frame / Enclosure | 8.5 BAR | Frame + motor |
| G 250 | Frame / Enclosure | — | Frame + motor |
| GA 10 | Compression System | — | — |
| GA 132 | Compression System | 5.2BAR / 10.4BAR / 5.5BAR / 7.5BAR | — |
| GA 160 | — | 6.9BAR / 7.5BAR / 8.5BAR / 8.6BAR / 10BAR / 10.4BAR / 13.8BAR / 14BAR | — |
| GA 250 | Frame / Enclosure | — | Frame + motor |
| GA 30 W | Compression System | AII380000 | Compressor element(s) and drive gear |
| GA 37 | Compression System | API-507438 | Compressor element(s) and drive gear |
| GA 37 | Compression System | API-572446 | Compressor element and drive gear |
| GA 37 | Compression System | API507438 | Compressor element(s) and drive gear |
| GA 37 | Pneumatic / Control Air System | API518000 | Service kits |
| GA 37VSD | Pneumatic / Control Air System | API518000 | Oil |
| GA 45 | Compression System | — | Compressor element and drive gear |
| GA 45 | Compression System | API-572446 | Compressor element and drive gear |
| GA 45 | Pneumatic / Control Air System | API518000 | Service kits |
| GA 45 | Compression System | HOL021000 | Drive Arrangement |
| GA 55 | Compression System | — | — |
| GA 55 | Compression System | API-572446 | Compressor element and drive gear |
| GA 55 | Pneumatic / Control Air System | API518000 | Service kits |
| GA 55 W | Compression System | Geldigvanafvolgendserienumme | Compressor element(s) and drive gear |
| GA 55- | Compression System | — | — |
| GA 55- | Compression System | GA55 · ers | — |
| GA 55VSD | Pneumatic / Control Air System | API518000 | Service kits |
| GA 7.5 | Compression System | — | — |
| GA 75 | Compression System | — | — |
| GA 75 | Pneumatic / Control Air System | API518000 | Service kits |
| GA 75 | Drive System | Geldigvanafvolgendserienumme | Shaft seal kit - Gear box drive |
| GA 75 W | Compression System | Geldigvanafvolgendserienumme | Compressor element(s) and drive gear - GA75(W) |
| GA 75-10-13 | Compression System | — | — |
| GA 75-100-125-150-175 | Compression System | — | — |
| GA 75-7.5 | Compression System | — | — |
| GA 90 | Compression System | Geldigvanafvolgendserienumme | Compressor element(s) and drive gear |
| GA 90 W | Compression System | Geldigvanafvolgendserienumme | Compressor element(s) and drive gear |
| GA 90C | Drive System | — | Element mounting kit |
| GA 90C | Drive System | Geldigvanafvolgendserienumme | Shaft seal kit - Gear box drive |
| GA 90C W | Drive System | Geldigvanafvolgendserienumme | Shaft seal kit - Gear box drive |
| GR 110 | Drive System | — | Elements and drive arrangement |
| GR 110 W | Drive System | — | Elements and drive arrangement |
| XAS 186 | Drive System | Mounts | 1. Compressor Drive Group |
| XAS 375 | Drive System | Mounts | 1. Compressor Drive Group |
| XAS 96 | Drive System | Mounts | 1. Compressor Drive Group |
| ZR 160 | — | Full Feature | Water system |
| ZR 250 | — | Full Feature | Air outlet - IMD 800 Full Feature - Mounts on vessel |
| ZR 75 | — | Geldigvanafvolgendserienumme · ers | — |
| ZR 90 | — | Geldigvanafvolgendserienumme · ers | — |
| ZR 90-AIF070755 | — | Geldigvanafvolgendserienumme · ers | — |
Quincy (5)
| Model | System | Serial / Configuration | Assembly Context |
|---|---|---|---|
| QGS 100 | Compression System | API150000 | — |
| QGS 40 | Compression System | API100000 | — |
| QGS 50 | Compression System | API100000 | — |
| QGS 60 | Compression System | API100000 | — |
| QGS 75 | Compression System | API150000 | — |
